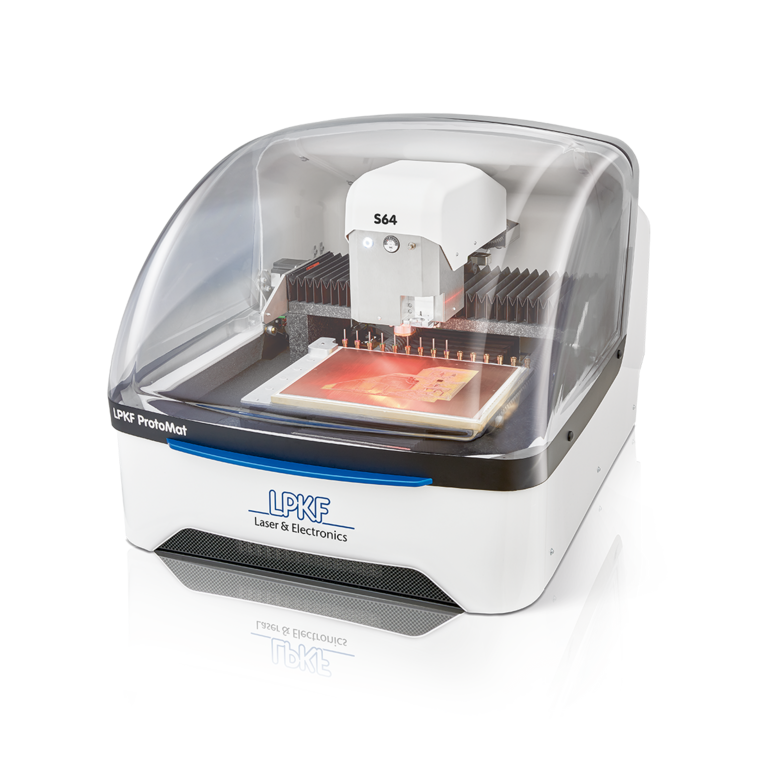

Manufacturing high performance PCBs
- Fully automatic operation incl. automatic tool change
- Low-maintenance high-speed milling spindle
- Intuitive, integrated system software
- Camera controlled fiducial recognition and milling width control
- Granite base for highest accuracy results

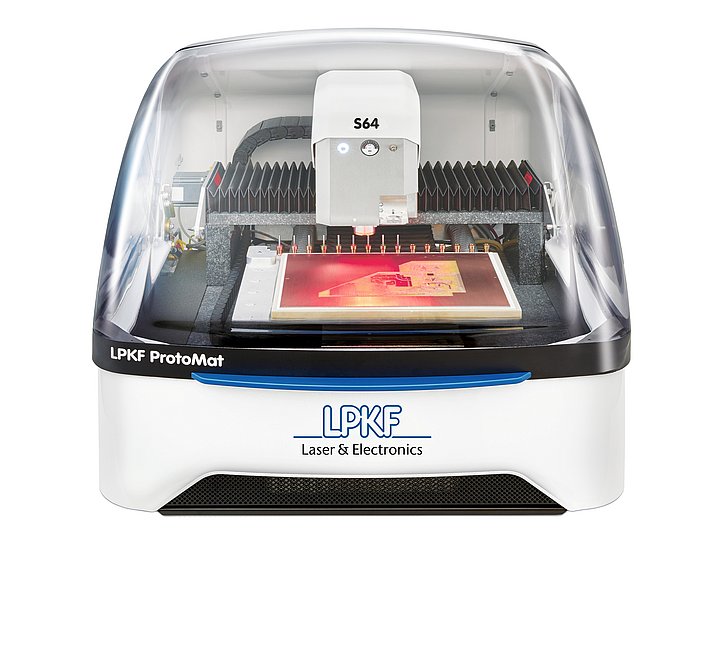

Milling Spindle 60,000 RPM
The milling spindle with 60,000 RPM guarantees shortest machining times and highest geometric accuracy. It is low-maintenance due to the new pneumatic self-cleaning function for milling spindle and milling depth sensor. The granite machine base also ensures consistently accurate results.

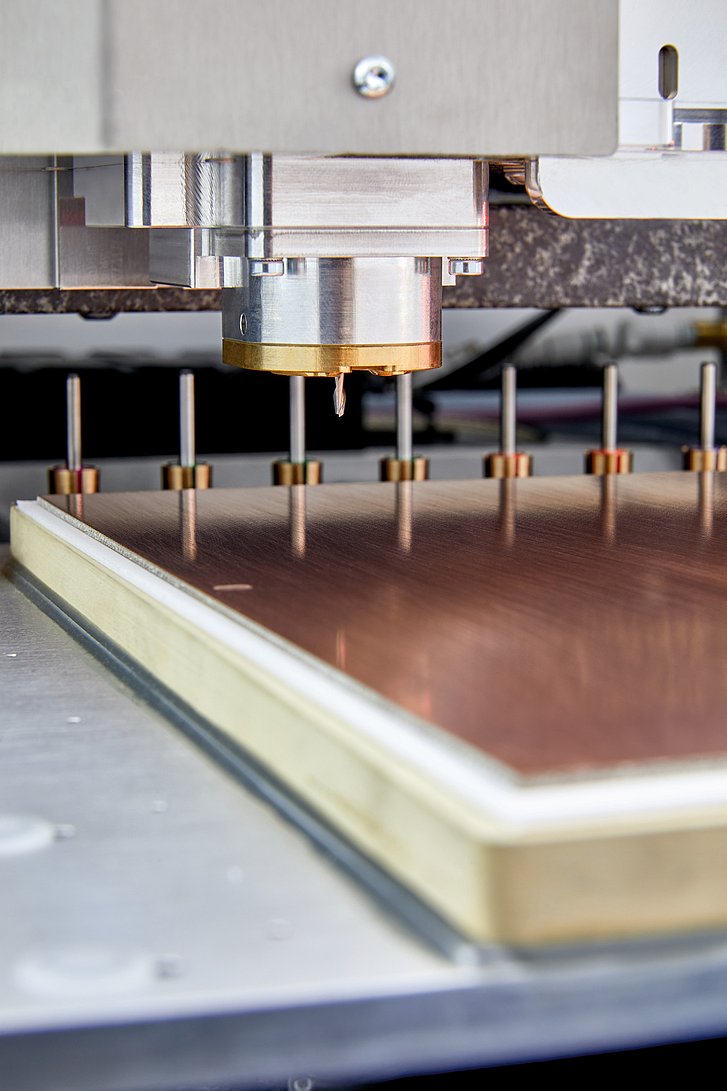

Automatic: Tool Change and Milling Width Adjustment
Up to 15 tools – more if required – can be changed automatically during the production process. Depending on the intrusion depth, the conical milling cutters generate different insulation channels. The automatic milling width adjustment ensures that the milling contour has a constant width. This shortens the set- up time and enables operator-free performance. Sensors in the ProtoMat S64 ensure optimally controlled, exact milling depth and also monitor the tool change process.
2.5 Dimensional Machining
Housing parts can be machined in up to 2.5 dimensions.
Solder Paste Dispenser
An integrated dispenser (available as optional extra) can fully automatically apply solder paste to solder pads. An additional data calculation is not necessary.
Sensors in the ProtoMat S64 ensure optimally controlled, exact milling depth and also monitor the tool change process.
LPKF ProtoMat S-Line
LPKF Circuit Board Plotter at a Glance
Specialist for RF and microwave applications, fully equipped for the electronics laboratory.
Allrounder for Rapid PCB Prototyping. The basic system for almost all in-house PCB prototyping applications.
|Milling / Drilling of 1- & 2-sided circuit boards||•||•||•|
|Milling / Drilling RF-, Microwave-Substrates||-||•||•|

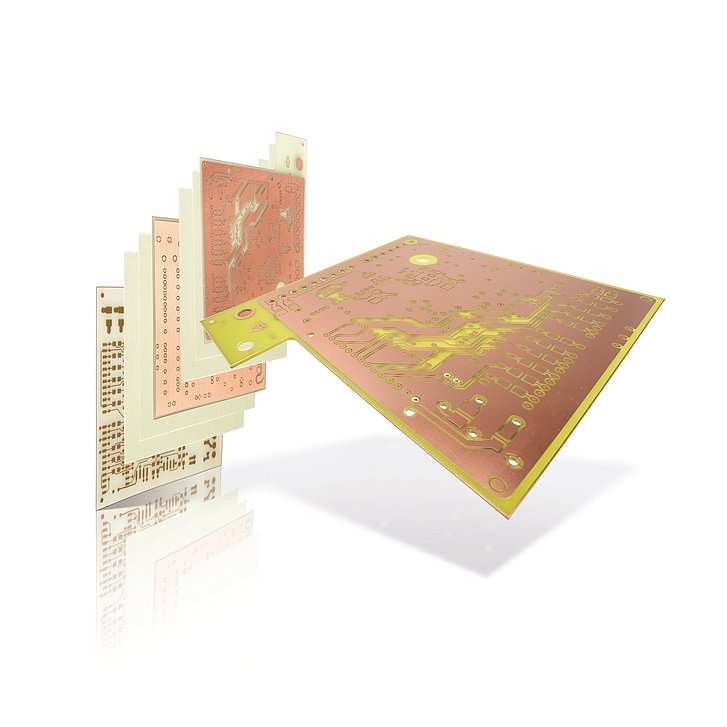

|Milling / Drilling of multilayers up to 8 layers||•||•||•|
|Routing of printed circuit boards||•||•||•|
|Engraving of front panels / signs||-||-||•|
|Milling cut-outs in front panels||•||•||•|
|Milling of SMD solder paste stencils||-||•||•|
|Machining of housings||-||•||•|
|Milling of solder frames||-||•||•|
|Depaneling, reworking of printed circuit boards||-||•||•|
|Drilling of test adapters||-||•||•|
