New Dimensions for Precision Laser Cutting

LPKF StencilLaser systems can be used to cut extremely small apertures with perfect geometry and maximum accuracy. Furthermore, stencil manufacturers have the opportunity to offer their customers the highest performance, quality and reliability. LPKF not only supplies the laser systems, but also first-class service with round-the-clock expert support.

 Overview LPKF StencilLaser Portfolio

With the portfolio of our StencilLaser systems, we are able to fulfill the range and variety of customer requirements. This overview should explain to you the most important features of the StencilLaser machines as well as the differences between the various systems in the portfolio. In addition, you will find out more about our software solutions and about optional expansion options for the systems.

 StencilLaser G 6080MicroCut 6080PowerCut 6080StencilLaser P 6060

Cutting range

600 mm x 800 mm

(23.6" x 31.5")

600 mm x 800 mm

(23.6” x 31.5”)

600 mm x 800 mm

(23.6” x 31.5”)

600 mm x 600 mm

(23.6" x 23.6")

Axis accuracy+/- 2 µm+/- 2 µm+/- 2 µm+/- 4 µm
Material thicknessup to 1 mmup to 1 mmup to 4 mm200 to 600 µm*
Software

Data processing: CircuitCam

Machining: StencilMaster

Service PackagesBasic / Classic / Premium Service Package

*Depending on the laser source

LPKF experts for stencil cutting will be happy to advise you on the selection of a suitable system for your requirements and the needs of your stencil manufacturing process

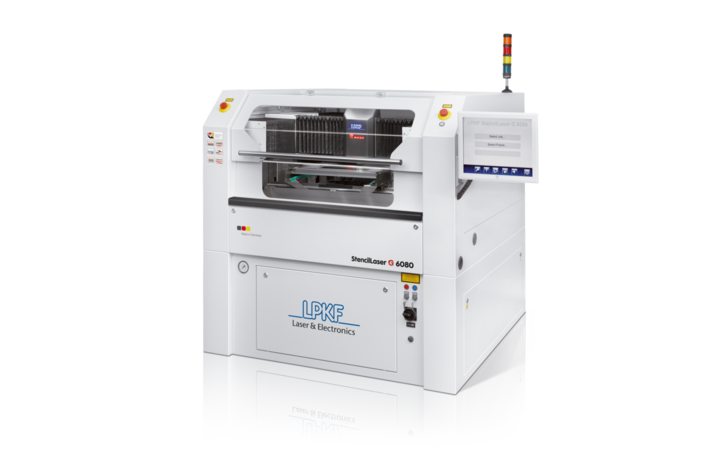

LPKF StencilLaser G 6080

The StencilLaser G 6080 is characterized by maximum cost-effectiveness combined with a low investment volume. Due to its large working area, it is able to cut two stencils in one operation. In addition, you do not need a stencil adapter for the StencilLaser G 6080, as the holder automatically adapts to the shape.

You can avoid standstill times by using the StencilLaser G 6080, since the production data can be checked in real time and automatically adjusted in case of deviations.

 StencilLaser G 6080
Cutting range

600 mm x 800 mm (23.6" x 31.5")

Axis accuracy+/- 2 µm
System dimensions1530 mm x 1920 mm x 1625 mm (61" x 75" x 64")

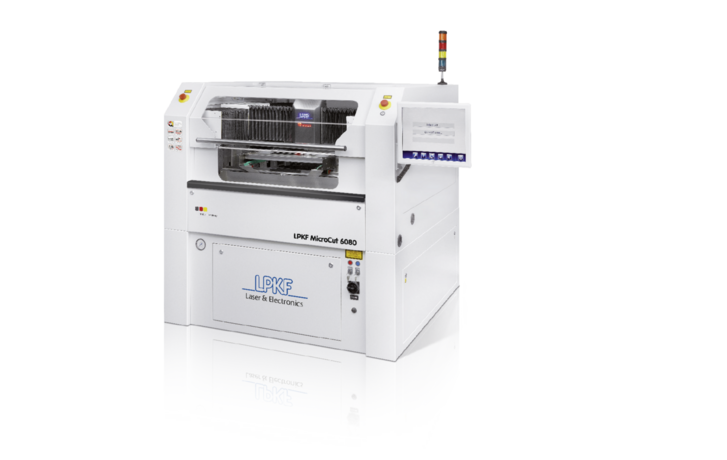

LPKF MicroCut 6080

Based on the proven StencilLaser G 6080 platform, the MicroCut 6080 is the ideal tool for cutting extremely small openings. In addition to the general advantages of the StencilLaser G 6080 platform, the MicroCut 6080 enables even more precise cutting of the smallest apertures. The system is specifically designed to meet the requirements of small apertures and thus enables the cutting of highly precise apertures with up to 18 μm on the laser input side and 10 μm on the laser output side.

 MicroCut 6080
Cutting range600 mm x 800 mm (23.6” x 31.5”)
Axis accuracy+/- 2 µm

System dimensions

1530 mm x 1920 mm x 1625 mm (61” x 75” x 64”)




LPKF PowerCut 6080

The PowerCut 6080 is characterized by its high contour accuracy with extremely small radii, optimally sharp edges and clean surfaces. LPKF's non-contact precision laser cutting is a cost-effective alternative to the classic punching process for small and medium series. Contour changes can be implemented quickly, easily and cost-effectively.

The PowerCut 6080 is designed to process a wide range of materials including aluminum, nickel, copper, stainless steel and many more. Depending on the material type, the material must have a thickness of 0.08 to 4 mm.

 PowerCut 6080
Cutting range600 mm x 800 mm (23.6” x 31.5”)
Axis accuracy+/- 2 µm

System dimensions

1530 mm x 1920 mm x 1625 mm (61” x 75” x 64”)

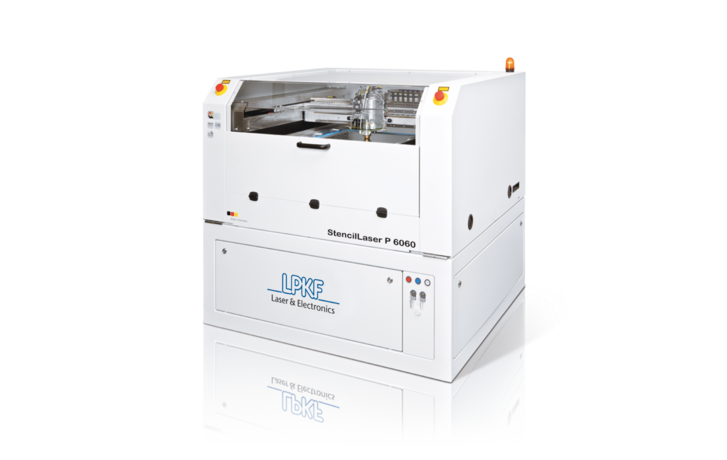

LPKF StencilLaser P 6060

The StencilLaser P 6060 offers space-saving design, user-friendly operation, high cutting speed and low energy consumption. Simply connect it, set it up ready for operation, and the first stencil can be produced. A few clicks on the screen are all it takes to start the production process. Design templates can be saved and used for global changes of opening shapes and sizes. Depending on requirements, individual templates can also be created for each customer and recalled if necessary.

 StencilLaser P 6060
Cutting range

600 mm x 600 mm (23.6” x 23.6”)

Axis accuracy+/- 2 µm

System dimensions

1400 mm x 1400 mm x 1450 mm (55” x 55” x 57”)




Service Packages

LPKF supports their customers worldwide at the highest level of quality. Our range of services extends from installation, calibration, and maintenance of the depaneling system to operator training, process optimization, and complete service packages.

Our service packages are available in three levels to meet different customer requirements:

  • Basic Service
  • Classic Service
  • Premium Service
