Market leader for Production of SMD-Stencil

  • Large working area of 600 x 800 mm
  • High and constant precision
  • Very fast cutting speed
  • Real time check of the openings

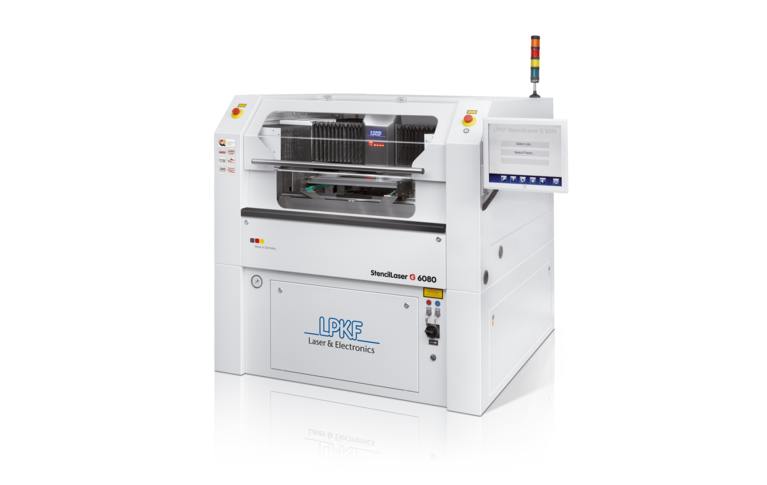

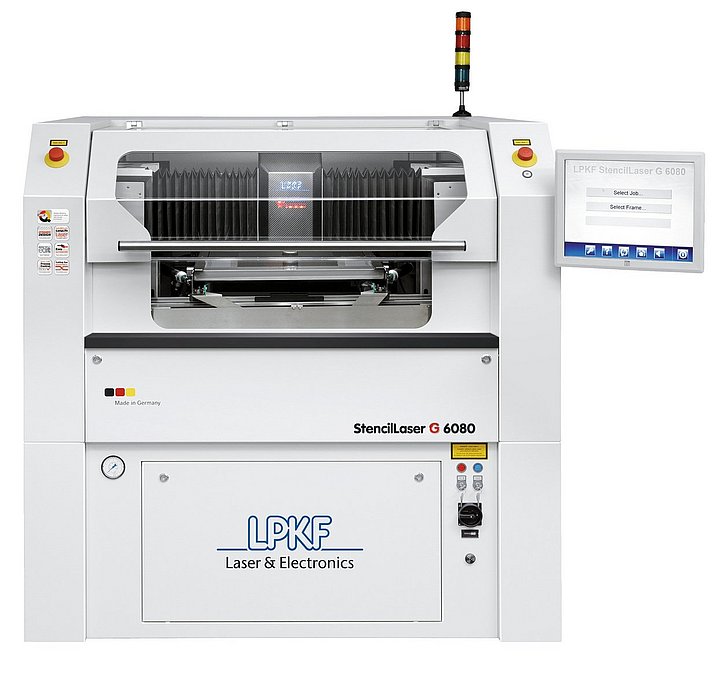

StencilLaser G 6080

The most productive and fastest cutting system for SMD stencils

The StencilLaser G 6080 allows you to cut up to two stencils in a single pass. In addition, the high cost-effectiveness combined with reasonable costs makes the system a worthwhile investment for all stencil manufacturers.

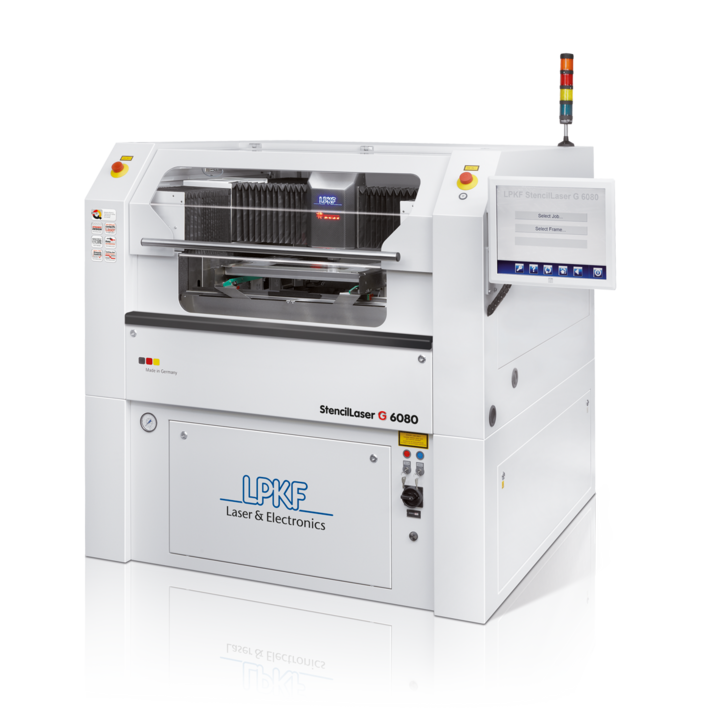

This is our StencilLaser G 6080

The LPKF StencilLaser G 6080 is the market leading system for the production of SMD stencils by using laser technology. The current system generation is the result of LPKF's many years of experience in the field of stencil production and the optimization and further development based on this knowledge.

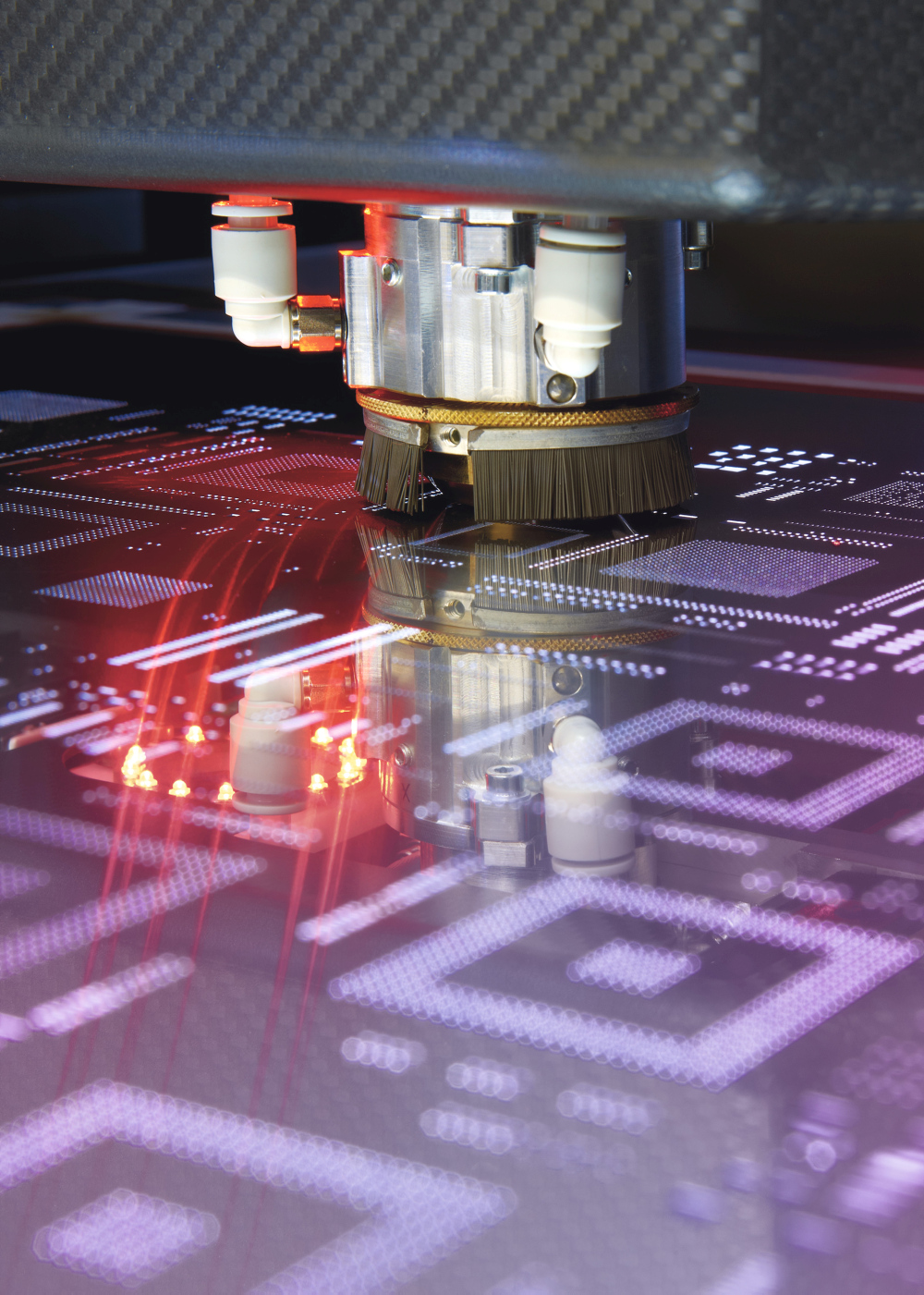

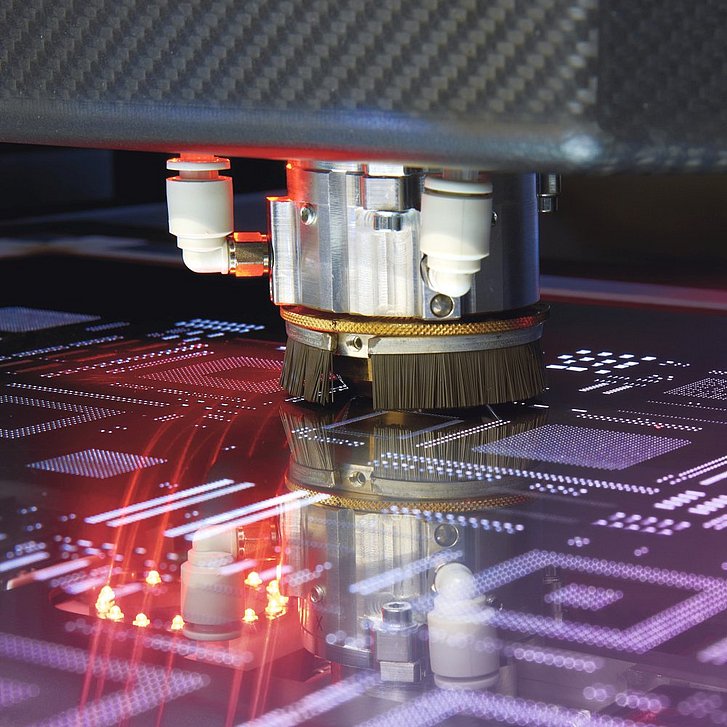

The system is characterized by a compact design that is focused on performance and quality, for example with an ultra-light and reliable axis structure made of carbon fiber. As a result, the G 6080 is capable of delivering unparalleled performance while maintaining high precision and repeatability - continously providing optimum quality.

To meet the high and diverse requirements of customers, the StencilLaser G 6080 ist equipped with various features such as Automatic Frame Adjustment, Cutting Gas Management Technology and Real-Time Process Control.

 Benefits of StencilLaser G 6080

The StencilLaser G 6080 combines the most innovative technologies with high cost-effectiveness, offering you a range of benefits. With regard to the requirements of Industry 4.0, it fits easily into an automated production line. You can learn about some of these advantages below:
Real-Time Process Control

Thanks to the Real-Time Process Control developed by LPKF, each opening is checked in real time. The system is able to detect a deviation from production data in real time, adjust the cutting parameters and thus avoid unnecessary downtime.

Automatic frame adjustment

You do not need a stencil adapter for automatic placement of the StencilLaser G6080. Simply select the desired frame and press OK. The holder adapts to the new shape in less than 10 seconds. This saves you valuable production time and makes you independent of the positioning of the stencil.

Dynamic design

The innovative dynamic design increases output performance by up to 20%. Combined with low maintenance, you'll experience stencil production in unmatched best time.

Low energy consumption

LPKF LongLife fiber laser technology reduces system energy consumption by up to 30% by relying entirely on air cooling. Downtimes due to maintenance work on external cooling systems are thus also avoided.

Cutting Gas Management Technology

The StencilLaser G 6080 uses either compressed air or oxygen as the cutting medium. In automatic mode, two different cutting gases can be used in parallel. Gas selection, pressure setting and process monitoring are all fully automatic.

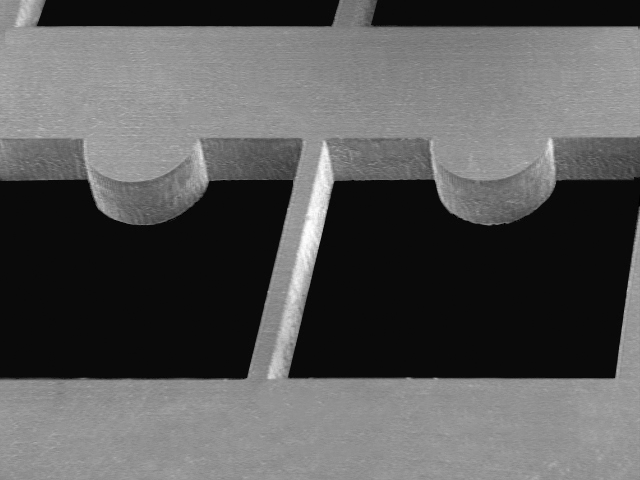

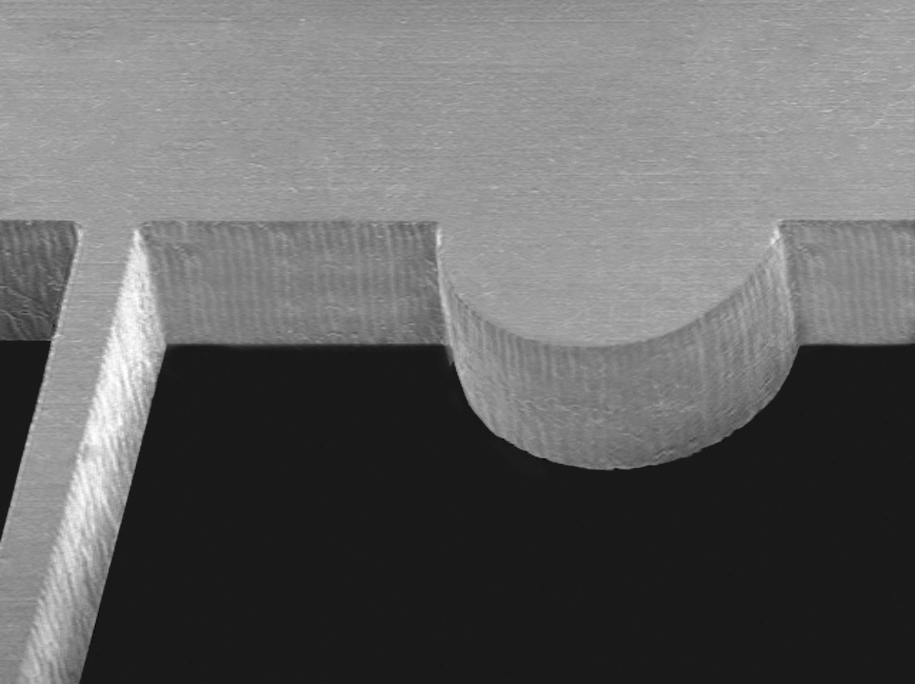

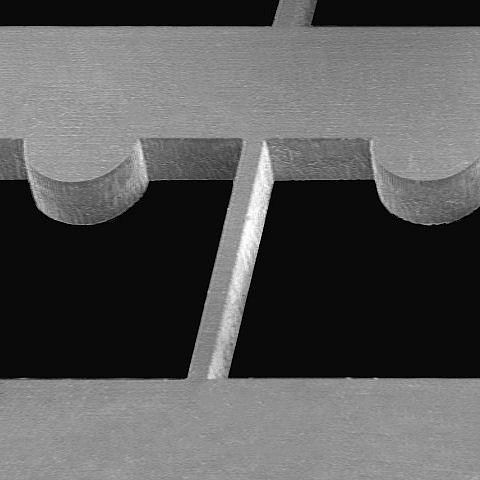

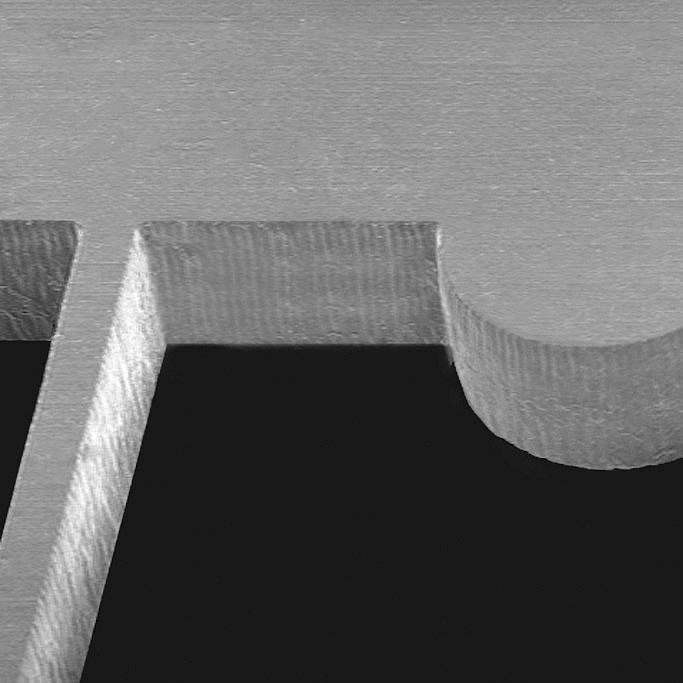

Flexible adjustment of opening shapes and dimensions

The LPKF EasyEdit software was specially developed for stencil production and is one of the most versatile and powerful programs on the market. It enables easy implementation of customer requirements. Opening shapes and sizes can be modified globally or individually. Opening dimensions are freely adjustable and special programs are available for special solutions.

Technical Data

 StencilLaser G 6080
Cutting range600 mm x 800 mm (23.6" x 31.5")
Max. frame size740 mm x 1800 mm x 40 mm (29.1" x 70.9" x 1.6")
Max. material thicknessup to 1 mm
Axial precision+/- 2 µm
System dimensions (W x H x D)1530 mm x 1920 mm x 1625 mm (61" x 75" x 64")
Weightca. 2200 kg
