Topic overview:
    LPKF ProMask
    and LPKF ProLegend

    In-house system for solder resist mask application and legend printing

    •     Compact, fast and simple
    •     Optimum soldering
    •     Professional lettering
    •     Four simple steps

    Two Sides of the Same Coin

    LPKF offers two processes for the professional surface finish of printed circuit boards: Solder resist with LPKF ProMask and assembly printing with LPKF ProLegend.

    Information

    Solder Mask and Legend Printing for In-House Prototyping

    The solder resist is - especially with SMT components - a basic requirement for safe soldering. With LPKF ProMask, a professional solder resist mask can be quickly and effectively applied to already structured circuit boards.

    The solder resist mask is printed from the CAD program onto a transparent foil, transferred to the printed circuit board and developed. In just four steps, the structured circuit board is given a perfect surface finish in just a few minutes for soldering without short circuits.

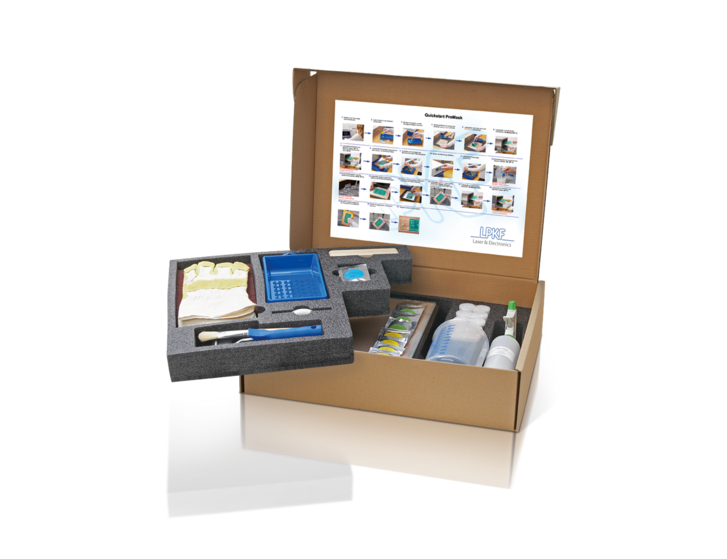

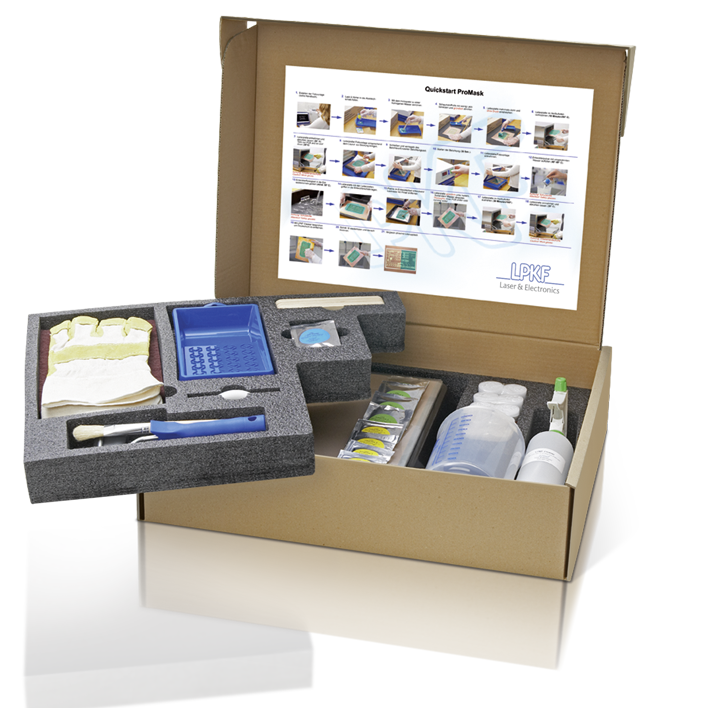

    The legend printing follows the same principle: ProMask and ProLegend are supplied with all necessary tools and consumables for a perfect result.

    LPKF ProMask and LPKF ProLegend are essential for fast, simple and cost-effective PCB prototyping or small series production. A photographic exposure process transfers all structures or lettering exactly to the printed circuit board.

    The Advantages of LPKF ProMask:

    •     Fast, simple and cost-effective
    •     Clean electrical insulation
    •     Perfect protection of the printed circuit board against corrosion and oxidation

    The Advantages of LPKF ProLegend:

    •     High adhesive strength against cleaning agents
    •     Simple procedure like LPKF ProMask
    •     Minimum letter height of 2 mm

    LPKF ProMask and ProLegend in Four Easy Steps:

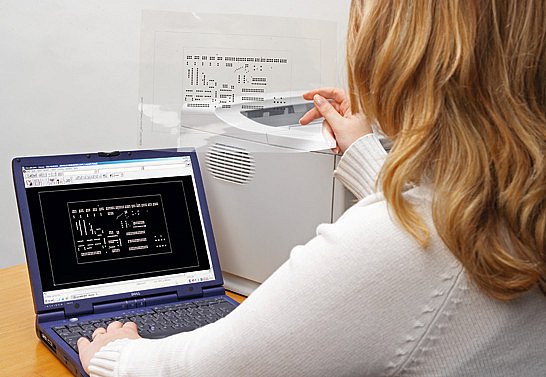

    [Translate to USA:] Print photo template
    1. Print Photo Template

    With LPKF CircuitPro and a standard laser printer, you can create a photo template with the desired layout on a transparent film.

    [Translate to USA:] Apply the lacquer
    2. Apply the Lacquer

    Mix the solder resist from the pre-portioned lacquer and hardener. Apply the solder resist onto the structured circuit board using the enclosed roller. The PCB is then pre-dried in a hot-air oven for 10 minutes.

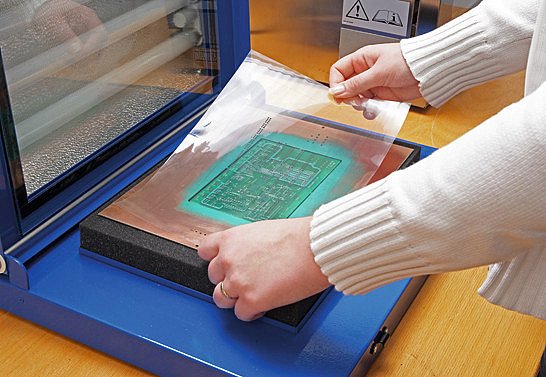

    [Translate to USA:] [Translate to Englisch:] Fotovorlage belichten
    3. Expose the Photo Template

    Position the template on the printed circuit board and place both in the exposer. Activate the exposure unit for 30 seconds. Remove the circuit board and remove the template.

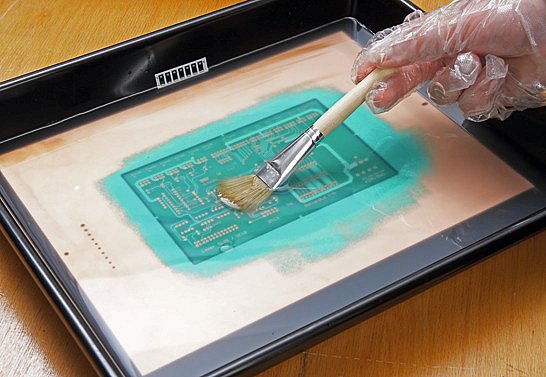

    [Translate to USA:] [Translate to Englisch:] Entwickeln und Aushärten der Lötstoppmaske
    4. Develop and Cure the Solder Resist Mask

    Mix the developer bath with the developer powder and hot water. Dissolve the unexposed solder resist in the developer bath using a brush. The solder resist is then hardened and cleaned in a hot-air oven for 30 minutes.

    Making a solder mask for printed circuit boards with LPKF ProMask

     Accessories & Options

    The performance of LPKF circuit board plotters and other LPKF systems can be enhanced with accessories and options. High-quality materials and precise workmanship ensure high reliability and durability for all expansions. The accessories can be retrofitted quickly and easily in self-assembly.
    Convection oven
    Convection oven

    With its integrated timer and precise temperature control, the convection oven offers optimum conditions for curing conductive paste for through-holes and laminating solder resist films.

    Technical data can be found in the product catalogue.

    Exposure unit
    [Translate to USA:] exposure unit

    In the exposure unit, the printed circuit board layout is transferred from the template to the printed circuit board.

    Technical data can be found in the product catalogue.

     Downloads

    Brochure
    LPKF ProMask / LPKF ProLegend (pdf - 734 KB)
    Download
    Prototyping Catalog
    Rapid PCB Prototyping Product Catalog (pdf - 4 MB)
    Download
    Prototyping TechGuide
    LPKF TechGuide Rapid PCB Prototyping (pdf - 3 MB)
    Download

    SMT / Finishing: Products and systems at a glance

    Systems for solder paste application
    Systems for SMD assembly
    Systems for reflow soldering
    Solder resist and legend printing

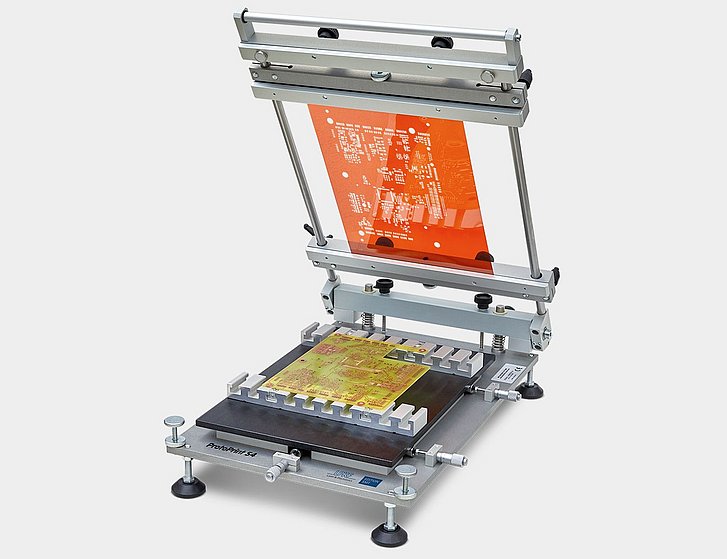

    LPKF Edition SMT ProtoPrint S4 fine-pitch stencil printer
    LPKF Edition SMT ProtoPrint S4

    Manual SMD fine-pitch stencil printer for precise application of solder paste to circuit boards.


    [Translate to USA:] LPKF Edition SMT ProtoPlace E4 pick & place system for SMD assembly of PCB prototypes
    LPKF Edition SMT ProtoPlace E4

    Manual pick & place system for SMD assembly of PCB prototypes and small series in the laboratory.

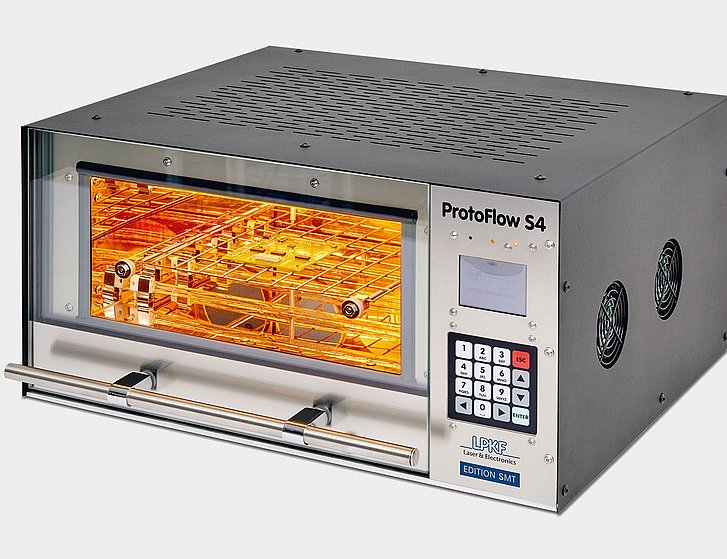

    Reflow oven LPKF Edition SMT ProtoFlow S4
    LPKF Edition SMT ProtoFlow S4

    Reflow oven for SMD soldering, also with lead-free, RoHS-compliant solder. The system also cures the ProConduct through-hole plating paste.


    LPKF ProMask and LPKF ProLegend

    With LPKF ProMask, printed circuit boards can be quickly and easily equipped with solder resist masks. The LPKF ProLegend assembly print identifies the position of the components on the printed circuit board and can be used for any labeling. Both processes are based on manual lacquer application.
