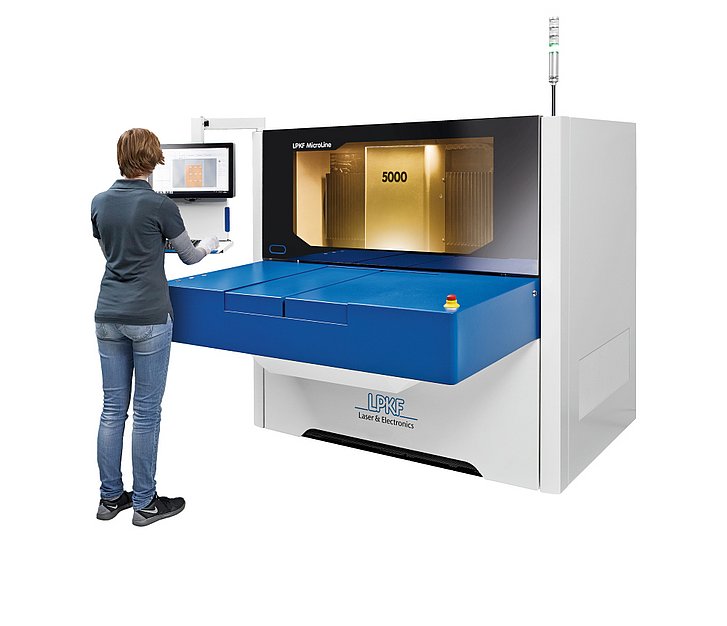

MicroLine 5000

UV laser system for PCB processing

  • Flexible printed circuit board materials
  • IC substrates
  • HDI circuit boards (High Density Interconnect)
[Translate to USA:] [Translate to Englisch:] MicroLine 5000

UV laser system for drilling and cutting flex circuits

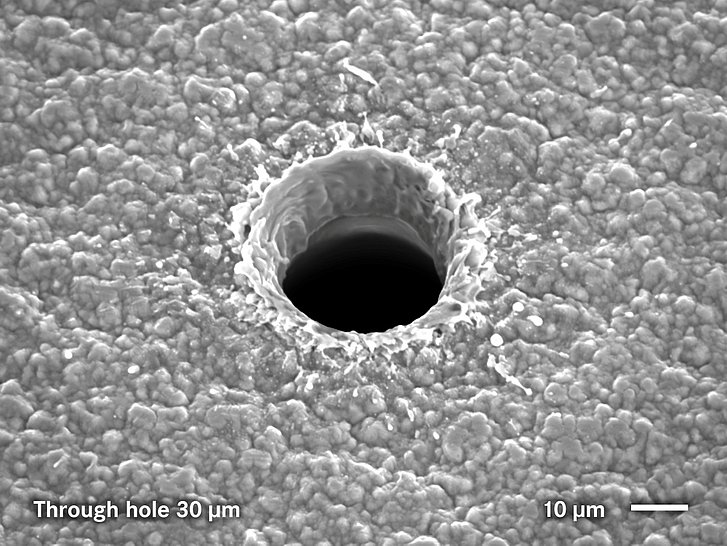

The MicroLine 5000 can drill small holes with a diameter as small as 20 μm into various organic and inorganic substrates. Common applications are the drilling of through holes and blind vias, the cutting of large mounting holes as well as the contour cutting of irregular PCB outlines.

Quality and precision

The UV laser delivers a particularly high quality because it cuts and drills even sensitive materials with a minimal thermal stress zone. The result is impressive: clean edges, no dust, no burr. The MicroLine 5000 systems have powerful 10 W, 15 W and 27 W laser sources and can be configured for different material handling variants.

Contour cutting

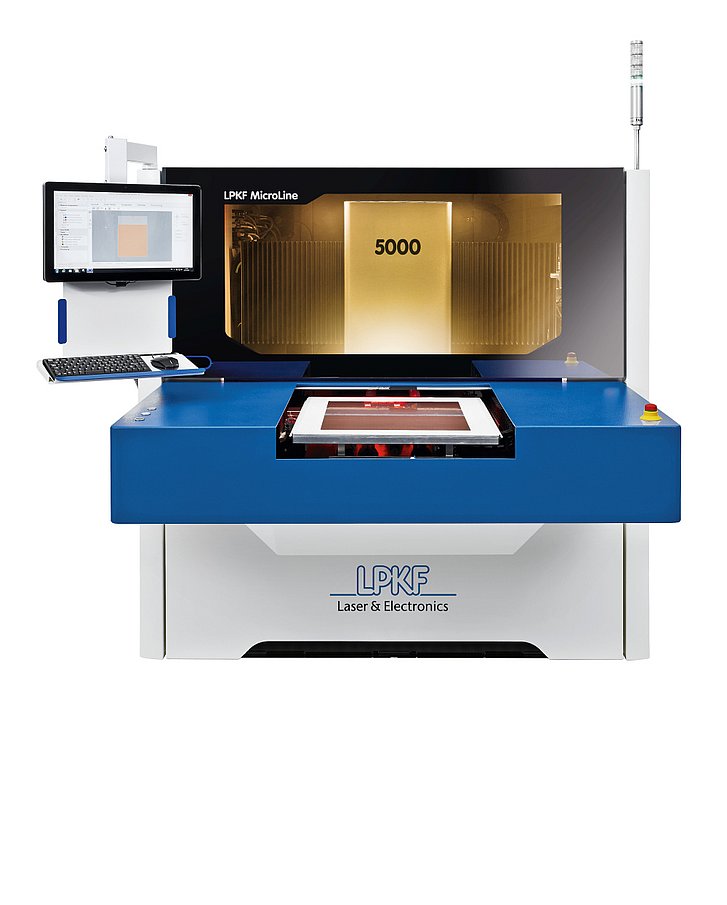

The MicroLine 5000 is a universal tool. In addition to drilling, standard panel sizes up to 533 mm × 610 mm can be cut. With a cutting channel of only 20 μm, the high-quality UV laser is also suitable for cutting demanding contours at high speeds.

Process monitoring

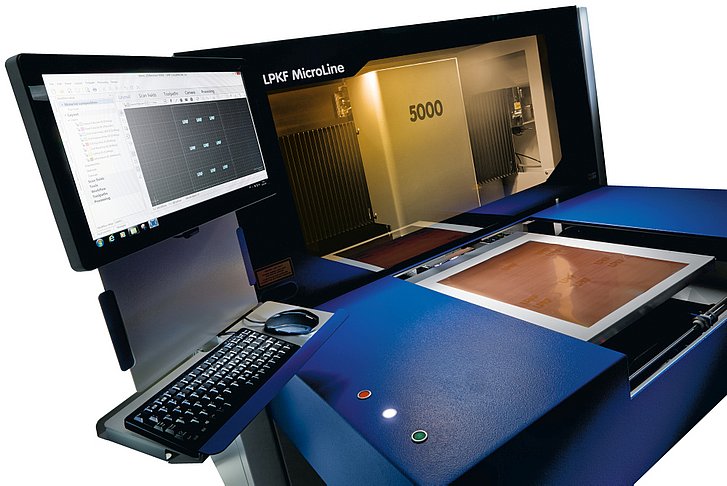

An integrated vision system in the MicroLine 5000 systems ensures fast fiducial recognition and thus precise alignment. The camera can use virtually any PCB feature as a fiducial mark. An integrated power measurement determines the laser power at material level for reliable and repeatable control.

Technical data

 MicroLine 5000
Max. working area533 mm x 610 mm (21" x 24")
Positioning accuracy+/-  20 µm
Diameter of focused laser beam  20 µm
System dimensions (W x H x D)1660 mm x 1720 mm x 1900 mm (66" x 68" x 75")*
Weightca. 2000 kg

* Height incl. status light = 2200 mm (87")

 Download

Brochure
LPKF MicroLine 5000 Series (pdf - 708 KB)
