3D MIDs Through Laser Direct Structuring (LDS)

Highly Integrated Electronic 3D Devices

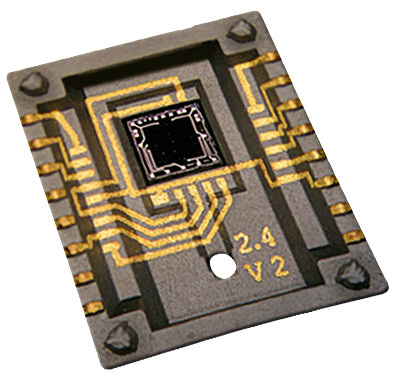

With the help of Laser Direct Structuring, the leading process in molded interconnect device (MID) technology from LPKF, conductive traces can be produced on the surfaces of injection-molded parts. This provides a unique way of integrating mechanical and electronic functions on a molding.

Injection-molded Parts with Structured Conductive Patterns

Completely 3D-capable: The Laser Beam Defines the Layout

In the LDS process, the conductive trace is defined by a laser beam, which writes the layout right onto the injection-molded plastic element.

The injection-molded plastic contains a special LDS additive. This material is first injection-molded to form the required part. Then the laser beam exposes the areas in which the conductor structures will later be situated, thereby activating the additive.During the subsequent metallization in a copper bath, the conductive traces form in the activated areas with strong adhesion to the surface and sharp contours.In this way, different layers, for example, nickel and gold, silver, or soldering tin, can be built up successively.

Advantages for New Products

  • High degree of design freedom
  • Miniaturization and weight reduction
  • Integration of various functionalities (3D conductive trace structures, antennas, switches, connectors, and sensors)
  • Shorter assembly times
  • Fewer process steps
  • Comparatively low initial costs

The Patented LDS Process

 LDS Process Steps

1. Injection Molding

The laser-structurable molded parts are produced by one-component injection molding from commercially available plastic provided with additives. Compared to two-component injection molding, only a simple tool is required and the injection process is faster.

2. Laser Activation and Structuring

In this step, the laser beam structures the conductive pattern. The thermoplastic material is activated by the laser energy. A physical-chemical reaction produces metallic nuclei - this is the activation process. In addition to activation, the laser forms a microrough surface on which the copper firmly anchors itself during metallization.

3. Metallization

The metallization of LPKF LDS parts begins with a cleaning step. This is followed by an additive conductor build-up in electroless copper baths, typically in the order of 8 to 12 μm/h. Finally, an electroless application of nickel and a thin gold layer is usually carried out. Application-specific coatings such as Sn, Ag, Pd/Au, OSP etc. can also be applied in this process.

4. Assembly

Many laser-activatable plastics with high heat resistance such as LCP, PA 6/6T or PBT/PET blend are reflow solderable and therefore compatible with standard SMT processes. For solder paste application, dispensing is the standard process when different height levels need to be reached. There are a number of suppliers of technical solutions for three-dimensional assembly.

LDS Technology in Use Today

Proven Millions of Times Over

The LDS technology has been proven in numerous everyday applications. For example, it can be found in compact sensors such as pressure sensors. Cell phones also contain MIDs based on LDS technology. Millions of phones use these three-dimensional molded interconnect devices as space-saving integrated antennas. Other applications can be found, for instance, in medical, air-conditioning, and safety technology.

Through-hole Plating

Reliable plated-through holes can be produced with LPKF LDS technology for connection of the surfaces of MIDs. This expands the possibilities for the layout.

Metallization

Various layers can be built up according to requirements.

  • Chemical copper, nickel, and gold
  • Electrolytic copper
  • Flash gold

Assembly

Population with electronic components is possible after metallization.

  • 3D assembly (pick & place)
  • Vapor phase soldering
  • Conductive adhesive bonding
  • Aluminum wire bonding
  • Flip chip process

 Downloads

Brochure
LPKF LDS: Laser Direct Structuring for 3D Molded Interconnect Devices (pdf - 2 MB)
Download
Guideline
Design rules for laser direct structured MID components (pdf - 820 KB)
Download
List
Approved plastics for Laser Direct Structuring with LPKF laser systems (pdf - 215 KB)
Download
List
Authorized LDS Manufacturers (pdf - 903 KB)
Download

LDS System Portfolio

[Translate to USA:] LPKF Fusion 3D 1500
LPKF Fusion 3D 1500

Designed for large components: While one strand is being processed with the laser, the second one moves into position. This almost completely eliminates nonproductive time.

[Translate to USA:] LPKF Fusion3D 1200
LPKF Fusion3D 1200

Equipped with a rotary indexing table, this system can be used for extremely economical production of 3D molded interconnect devices in low, medium, and high volumes.

[Translate to USA:] LPKF Fusion3D 1100
LPKF Fusion3D 1100

The entry system for production of 3D MIDs. The Fusion3D 1100 can be equipped with the customer’s own workpiece holders.
